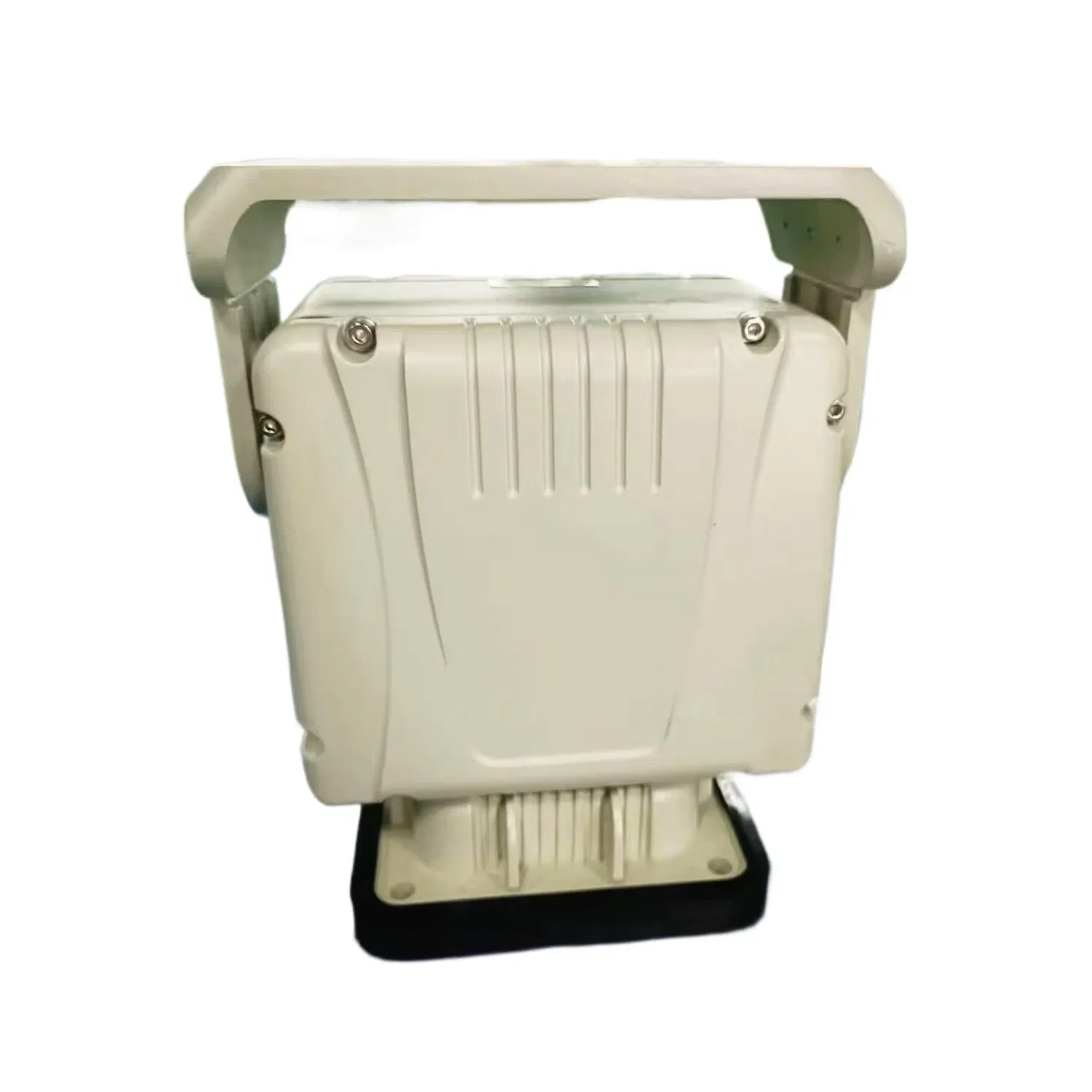

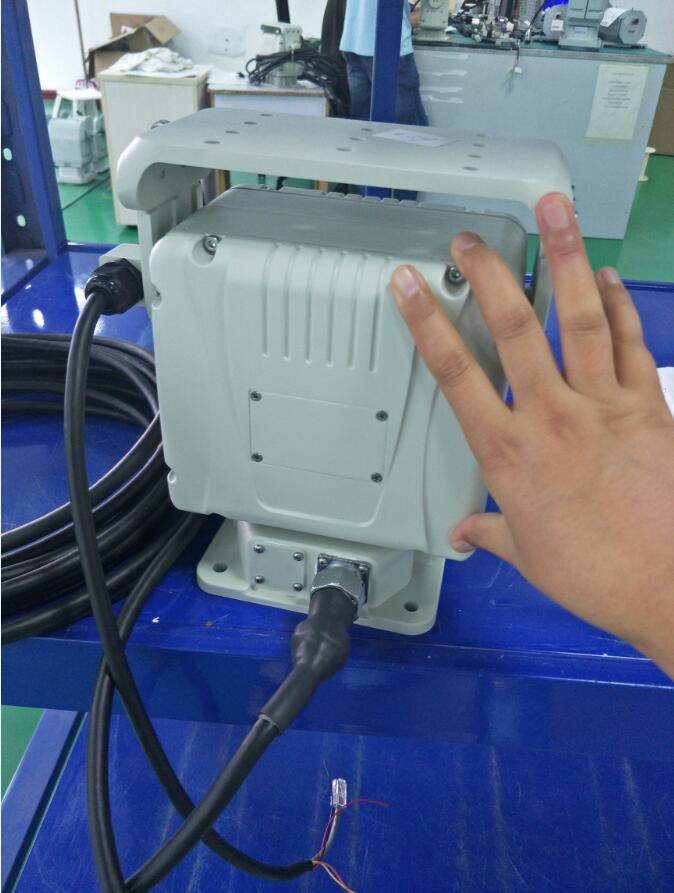

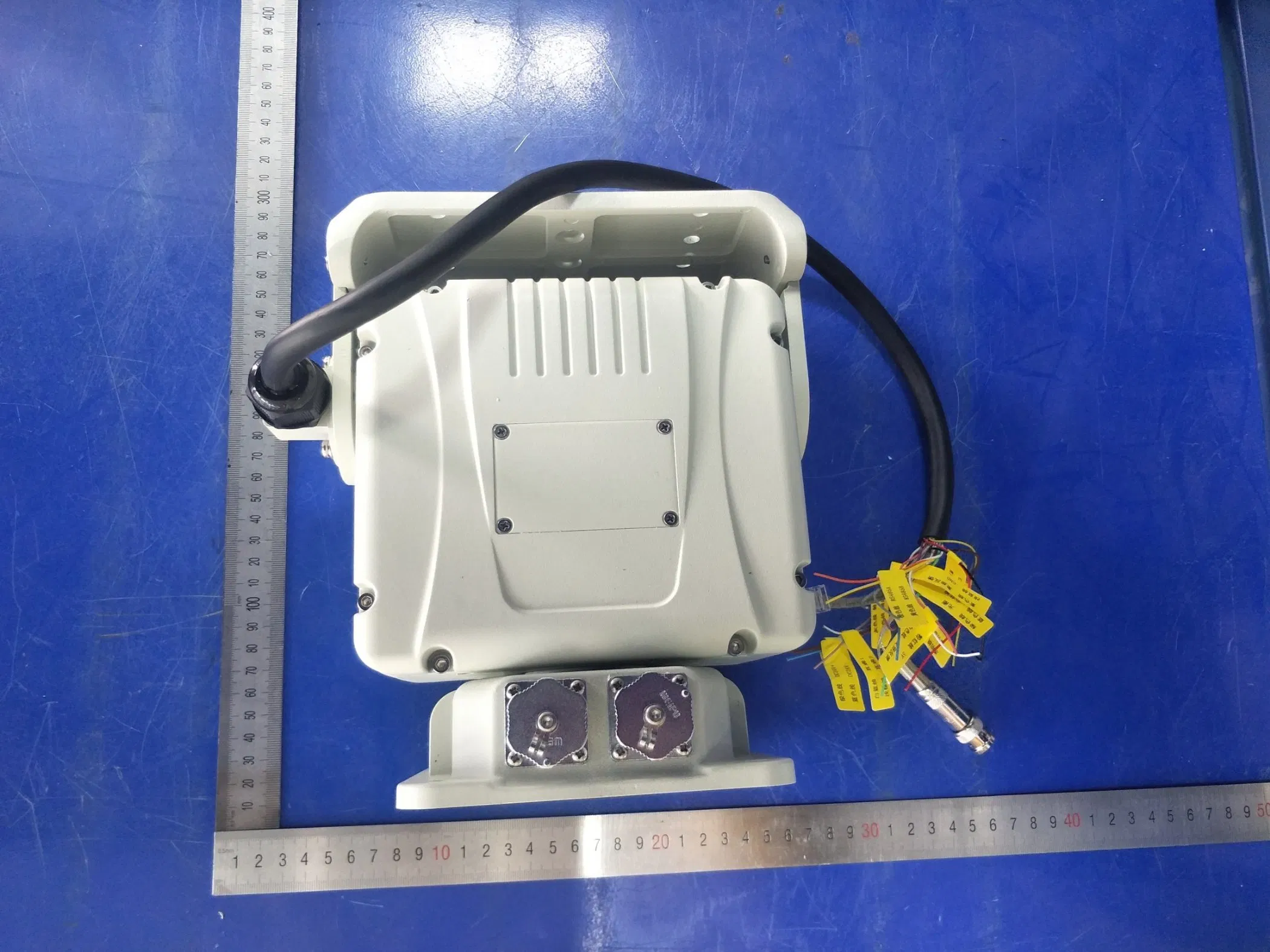

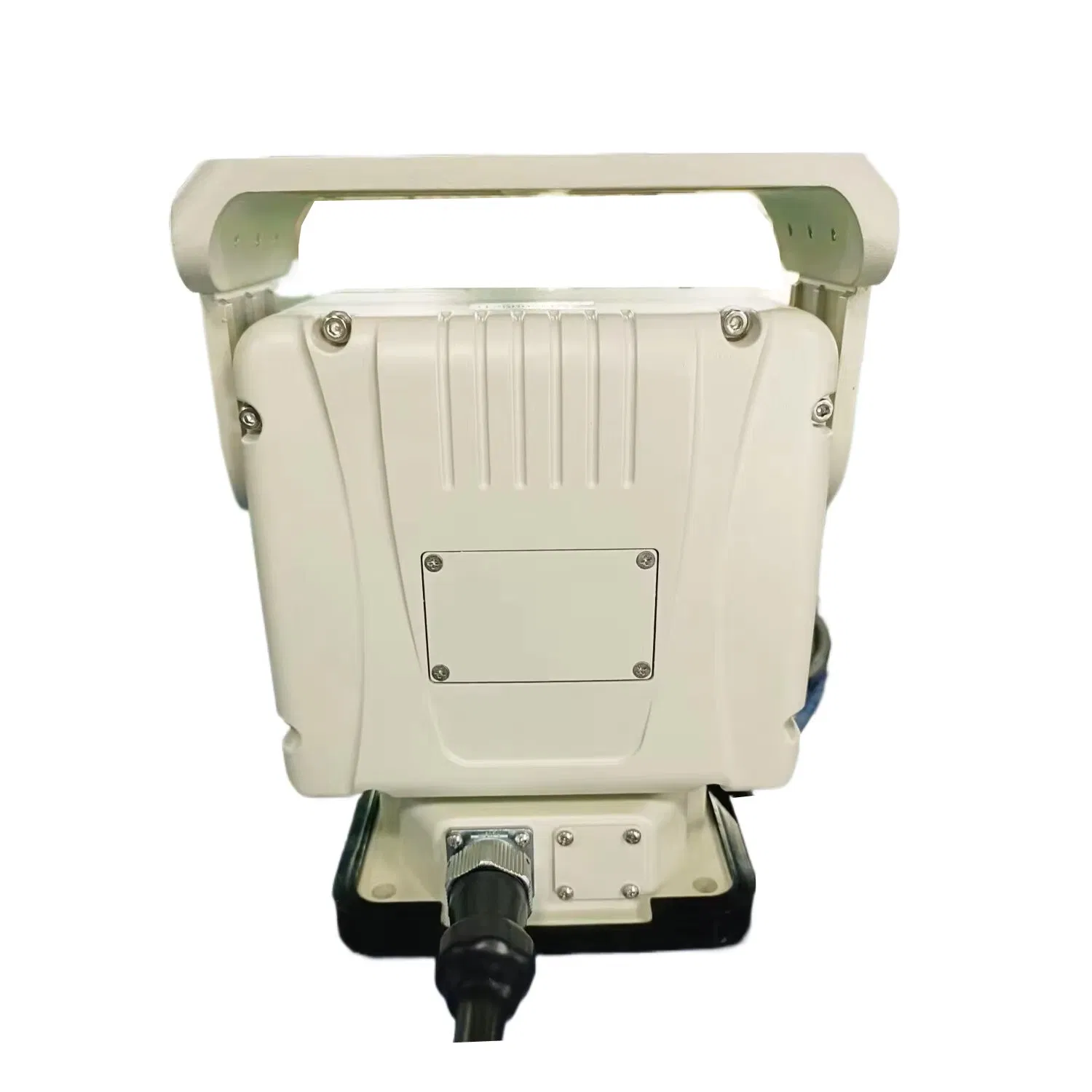

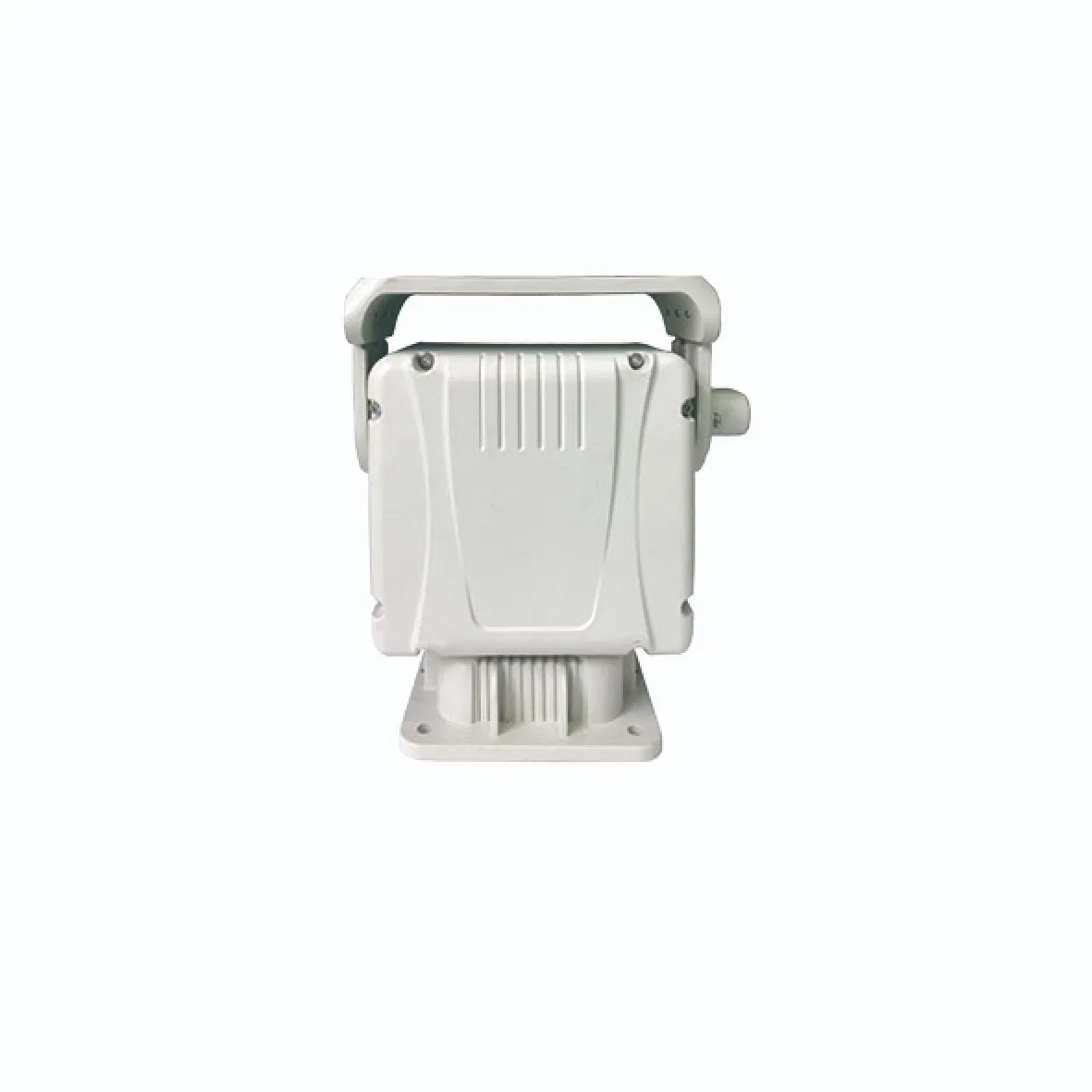

Small Intelligent PTZ Pan Tilt with 5kg Payload Capacity
Small Intelligent PTZ Pan Tilt with 5kg Payload Capacity
Small Intelligent PTZ Pan Tilt with 5kg Payload Capacity
Small Intelligent PTZ Pan Tilt with 5kg Payload Capacity
Small Intelligent PTZ Pan Tilt with 5kg Payload Capacity
1 / 5
Small Intelligent PTZ Pan Tilt with 5kg Payload Capacity
Small Intelligent PTZ Pan Tilt with 5kg Payload Capacity
Small Intelligent PTZ Pan Tilt with 5kg Payload Capacity
Small Intelligent PTZ Pan Tilt with 5kg Payload Capacity
Small Intelligent PTZ Pan Tilt with 5kg Payload Capacity

Small Intelligent PTZ Pan Tilt with 5kg Payload Capacity

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt
Send Inquiry

Product Description

●  Basic Information
Model NO.
SHR-SP1510
Type
CCTV Camera
Sensor
CMOS
HDMI Format
1080P
Resolution
520tvl
Lens Kind
Autofocus Lens
Certification
CE, RoHS, ISO9001
Protection
IP66, Waterproof
Max Load
10kg
Material
Aluminum Die Cast
●  Product Description

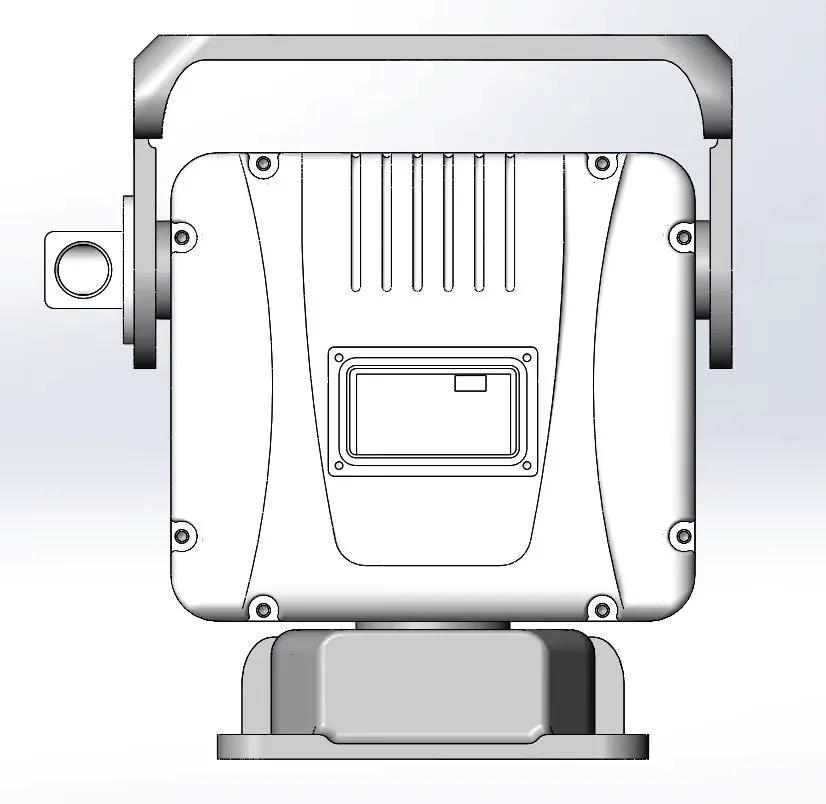

Small Intelligent PTZ Pan Tilt 1

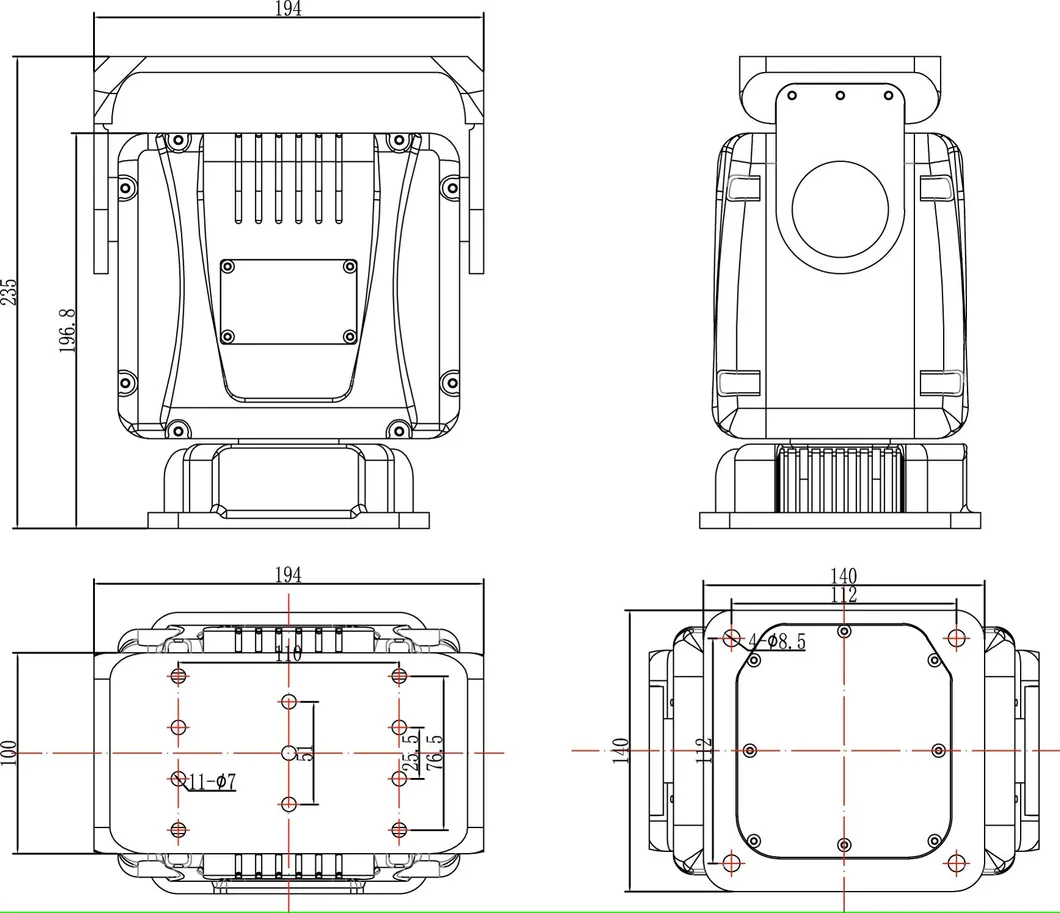

Small Intelligent PTZ Pan Tilt 2
Small Intelligent PTZ Pan Tilt 3

Key Features

✓
Compact football-style design supporting top or side mounting for various cameras and antennas.
✓
Equipped with a stainless steel worm-gear system for long-term accuracy and zero step loss.
✓
High-durability coating: anti-moisture, anti-mould, and anti-salt fog for harsh environments.
✓
Ultra-lightweight construction at only 5.5kg, ensuring easy installation.
✓
Customizable wiring and high-precision rotation speeds (Pan: up to 30º/s, Tilt: up to 15º/s).
●  Technical Specifications
Product NameSmall Pan Tilt Motor Unit
ModelSHR-SP1510
Rotation AnglePan: 360º continuous; Tilt: +60º to -60º (customizable)
Presets200 Presets with ±0.1º accuracy
Auto Cruising8 tracks (10 presets per track)
ProtocolPelco-D/P
InterfaceRS485 (RS422/RS232/IP optional)
Input VoltageDC/AC24V~28V or DC12V
Operating Temp-25ºC to +65ºC (Optional -40ºC to +65ºC)
Dimensions265mm * 180mm * 315mm
●  Packaging & Shipping
Package Size
26.50cm * 18.00cm * 31.50cm
Gross Weight
12.000kg
Shipping 1
Shipping 2
●  Facility Overview

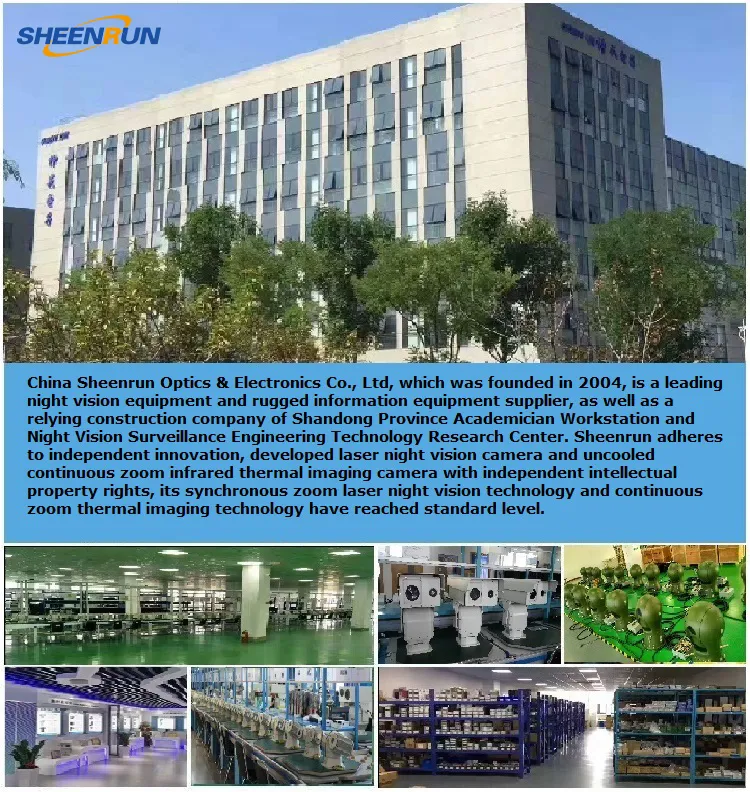

Facility 1
Facility 2

Frequently Asked Questions

Q: What is the maximum weight the PTZ unit can carry?
A: The unit supports a maximum payload capacity of 10kg, making it suitable for various cameras and antennas.
Q: Is the unit suitable for outdoor marine environments?
A: Yes, the shell is coated with anti-moisture, anti-mould, and anti-salt fog paint, and it features an IP66 protection class.
Q: What control protocols are supported?
A: The unit supports Pelco-D and Pelco-P protocols via RS485 interface (RS422/RS232/IP are optional).
Q: How precise is the positioning of the presets?
A: The unit supports up to 200 presets with a high positioning accuracy of ±0.1º.
Q: What are the rotation limits for pan and tilt?
A: It offers 360º continuous pan rotation and a tilt range of +60º to -60º, which can be further customized.
Q: Does the unit support homing functions?
A: Yes, a homing time can be configured within a scope of 1 to 60 minutes for automated positioning.
